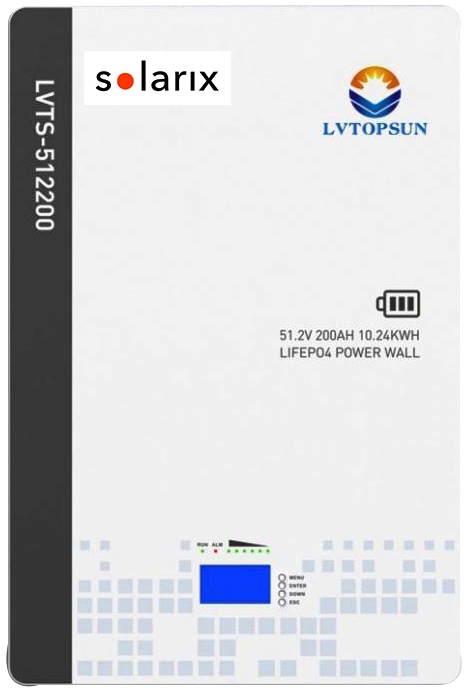

Solarix LVTS 51.2V 200Ah 10.24kWH LiFePo4 Single Battery Module-LCD Control Panel, Smart Battery Management System, Nominal Voltage: 51.2V, Rated Capacity (5HR):200Ah, Total Usable 10.24kWh, Maximum Continuous Charging 100AMaximum Continuous Discharging 120A, Charge Voltage: 55.68 – 56.16 VDC, Discharge Voltage 45.6- 56.16 VDC, RS232/ RS485/ CAN Ports Easy Wall Mount Installation, Design To Work Perfectly Hybrid Invertors Up To 8KVA, Retail Box, 1 year Limited Warranty
Product Overview
The Solarix LVTS 51.2V 200Ah 10.24kWH LiFePo4 Single Battery Module is a Wall Mount Installation complete with a Smart Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 8KVA. Built-in Smart Battery Management System (BMS) with RS232 , RS485 and CAN Bus communication. This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 153kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
The Solarix LVTS 51.2V 200Ah 10.24kWH LiFePo4 Single Battery Module is a Wall Mount Installation complete with a Smart Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 8KVA. Built-in Smart Battery Management System (BMS) with RS232 , RS485 and CAN Bus communication. This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 153kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Highlights
• 51.2V 200Ah LiFePo4 Single Battery Module
• 10.24kWH Rated Capacity (5HR)
• Smart Battery Management System
• Parallel Connection Up To 15 Packs With Full Communications
• Easy Wall Mount Installation
• Discharge Voltage 45.6- 56.16 VDC
• Charge Voltage: 55.68 – 56.16 VDC
• Maximum Continuous Charging Current 100A
• Maximum Continuous Discharging Current 120A
• LCD Control Panel
• 1x RS232 , 1x RS485 and 1x CAN-Bus, 1x RS-485 Ports
• Built In Protection For Over Charge, Over Discharge Over Temperature
• Design Life +/- 15 Years
• Cycle Life @ 1C +/- 4000 Cycles @ 100% DOD or 6000 cycles @ 80% DOD
• Colour White
• 51.2V 200Ah LiFePo4 Single Battery Module
• 10.24kWH Rated Capacity (5HR)
• Smart Battery Management System
• Parallel Connection Up To 15 Packs With Full Communications
• Easy Wall Mount Installation
• Discharge Voltage 45.6- 56.16 VDC
• Charge Voltage: 55.68 – 56.16 VDC
• Maximum Continuous Charging Current 100A
• Maximum Continuous Discharging Current 120A
• LCD Control Panel
• 1x RS232 , 1x RS485 and 1x CAN-Bus, 1x RS-485 Ports
• Built In Protection For Over Charge, Over Discharge Over Temperature
• Design Life +/- 15 Years
• Cycle Life @ 1C +/- 4000 Cycles @ 100% DOD or 6000 cycles @ 80% DOD
• Colour White
Specifications
• Stock Code SOLLVT1024LB200A
• Description Solarix LVTS 51.2V 200Ah 10.24kWH LiFePo4 Single Battery Module
• Complete with integrated Smart Battery Management System
• Rated Capacity (5HR): 200Ah 1C Rated Lithium battery]
• Discharge Voltage 45.6- 56.16 VDC
• Charge Voltage: 55.68 – 56.16 VDC
• Maximum Continuous Charging Current: 100A
• Maximum Continuous Discharging Current: 120A
• Parallel: Parallel connection up to 15 packs with full communications
• Cells: New Li-Ion Prismatic Cells
• Design Life: -/+ 15 Years
• Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
• Ports: 1x RS232 , 1x RS485, and 1x CAN Bus Ports
• Dimensions (WxDxH) mm 465mm x 186mm x 695mm
• Weight Approx. 84Kg
